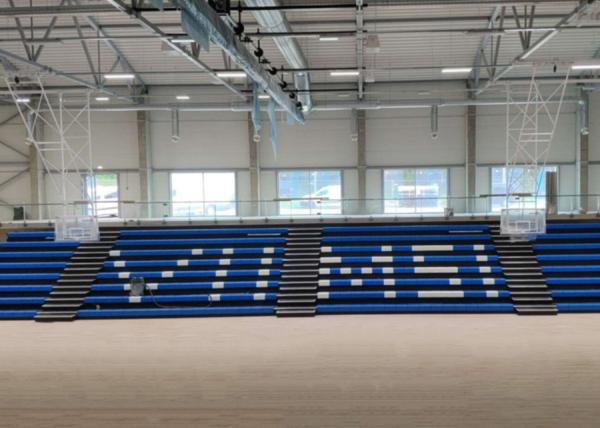

Semi / Fully Automatic Telescopic Tribunes for Sport Stadium Place
Product Description
Burgeon telescopic tribune is the latest step in the development of quiet, smooth running of retractable seating System. Every parts including our slant frame engineering geometry has been designed to enhance the system’s operation strength and stability. The result is a seating system that is quieter to operate, stronger in its design and more user friendly for facility staff.
Product specification
| Row Depth |
650mm- 850mm |
| Row Riser height |
250mm-300mm |
| Stair width |
1000mm |
| Seat centers |
460mm |
| Material of the frame |
Steel with powder coating
decking: anti-slip plywood deck
|
| Material of the seat |
HDPE modular polymer bench |
| Standard color |
under structure: black, grey or blue color
seat color: please refer to Burgeon color swatch
|
| Optional color |
refer to pantone color swatch |
| Operative method |
Manual or Electric Operation |
| Test Report |
EN 13200-5 |
Accessories:
1. Operating Handles: Provide and install manual operating handles constructed of 19mm OD steel tubing. Handles to engage pull-bar installed at the first tier.
2. Front Rail: Can be provided 800mm high above deck (for better sightline), steel rails with tubular supports and intermediate members. Standard Front rails if required shall be 1000mm. Location detailed on drawings.
3. Folding Backrests: Platform seating shall include 460mm backrests mounted on folding steel supports. They shall be in suitable lengths with no finger jointed material. Backrests shall manual fold for storage.
4. Portable Access Stairs: Provide portable stair units with hand rails. Stair understructure shall be steel with risers & treads. Stairs shall be fitted with not less than four
5.Carpeted Decks: Provide at decks and steps carpet as selected. Color to be of manufacturer's standard selection.
Product Application
School Sport halls
School theatres
Gyms
Event Center
Entertainment Center
Auditoriums
Sports halls
Conference venues
Multipurpose Center
